K9 | Professional Dual Digital UHF Wireless Lavalier System

The Saramonic K9-US is a professional dual digital UHF wireless microphone system built for filmmakers, videographers, and high-level content creators who need a seamless, remote-controlled audio solution for two people. It features 24-bit digital wireless sound transmission and is equipped with miniature lavalier mics, giving you detailed, cinema-quality sound, while keeping the setup discreet. The system features a dual-channel camera-mount receiver that connects to cameras, mixers, and recorders with XLR or 3.5mm analog outputs, and digitally connects to mobile devices and computers via USB-C. The transmitters also feature 32-bit float or 24-bit on-board recording with advance timecode synchronization, ideal for avoiding dropped signals and heavy RF interference while syncing perfectly to your project in post-production. The transmitters and receiver feature rugged aluminum construction, making them tough enough for demanding field production environments.

Ultra-Wide UHF, Power, and Performance Professional Productions Need
The K9-US is designed for professionals, with the performance and power pros need. It features an ultra-wide frequency UHF operating spectrum of 550-960MHz with GPS-based frequency updates and advanced auto frequency scanning. It also includes three sets of frequency specific antennas, 550-608, 614-698, and 863-960MHz, letting users choose the best frequency band for their needs, and not forcing you to cut the antennas. The transmitters also feature selectable RF power of 10, 25, 50, or 100mW. Giving users the power and reliability needed for professional applications and that 2.4GHz systems just cannot match, especially in heavy RF environments or scenarios with lots of obstacles.

Powerful and Flexible Body Pack Transmitters with Remarkable Dynamic Range

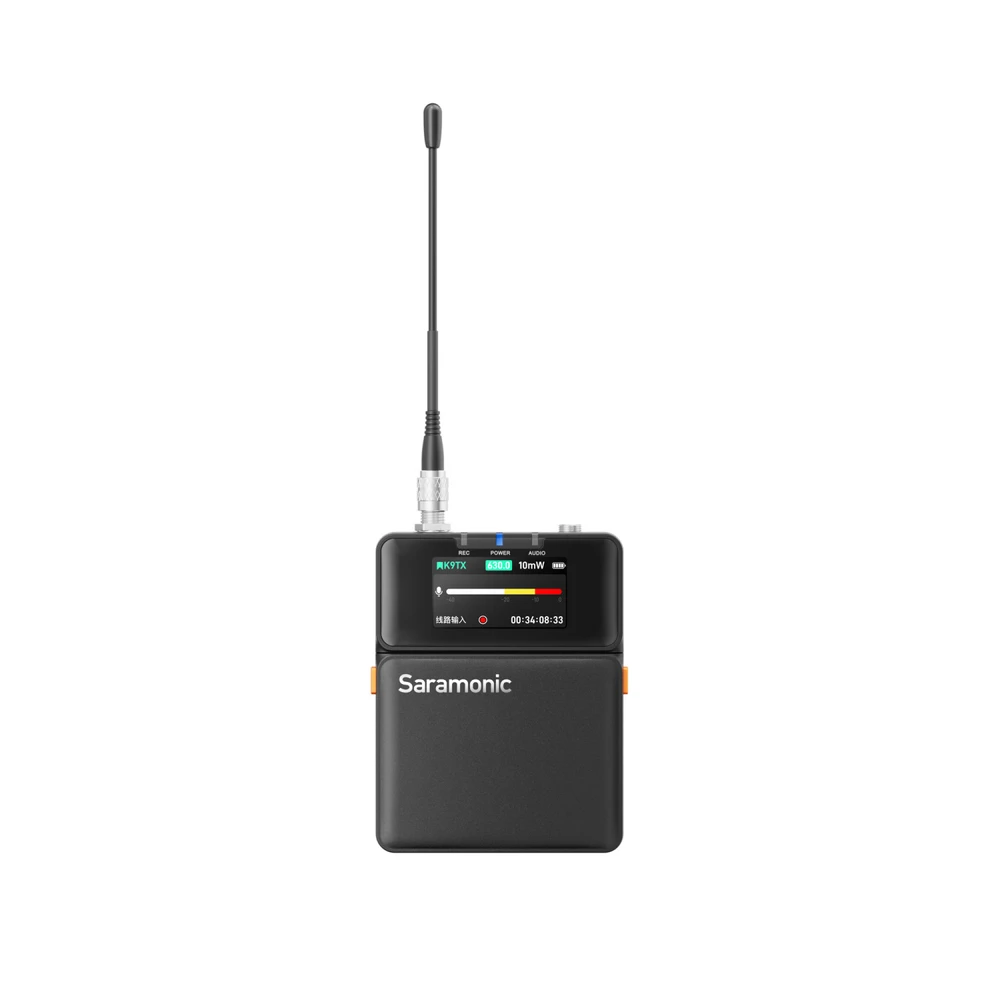

The K9TX transmitters feature locking 3.5mm inputs, allowing you to transmit microphones or line-level signal. The transmitters feature 130dB dynamic range, allowing you to capture every sonic detail from a whisper to a scream. The transmitters are also compatible with 3.5mm TRS Sennheiser pin-out mics and feature selectable 3V or 5V, allowing you to choose hundreds of other lavalier, headset, and other mic options to expand the system further. Switch to line-level and connect to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver. Perfect for capturing an IFB mix from the production mixer or recorder for a real-time feed to directors, producers, and camera operators.

Miniature Lavaliers that are Discrete, Rugged, and Ready for Real Action
The K9-US includes two miniature lavaliers that are not just tiny but can handle anything your wild production throws at them. Designed to capture crystal clear audio these tiny lavaliers deliver unmatched durability, and crystal-clear sound in any environment. Ultra-compact and discrete with a 3mm diameter, making them ideal for concealing in clothes or in costumes on set. But they are not just tiny, they are tough. They are IP67 rated, for resistance to water and dust and feature a Kevlar® reinforced cable with a remarkable tensile strength. Ensuring these lavs can handle the toughest environments from the desert to a rainstorm and the wear and tear of a pro production.

Portable Dual Receiver with Dual LED Screen and Adaptable Outputs

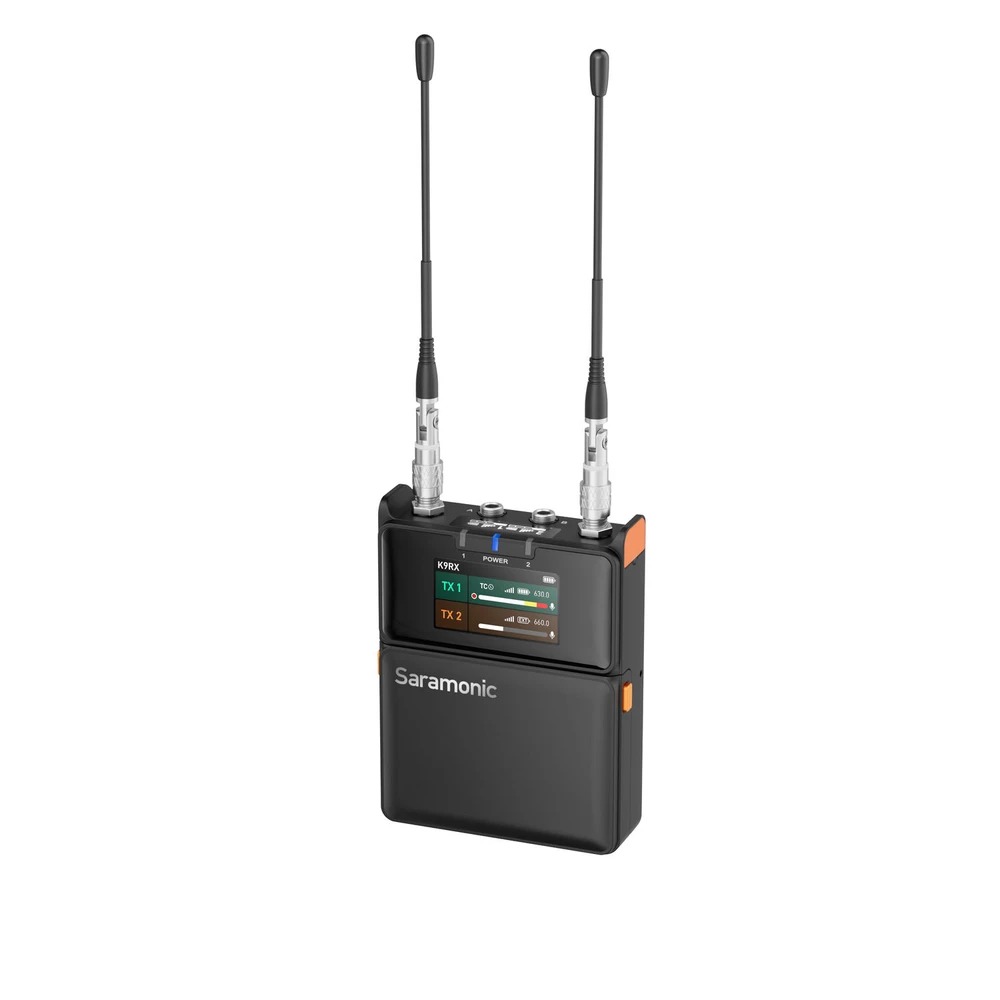

The lightweight K9RX dual cam-mount receiver features flexible output options, allowing users to maximize their recording capabilities. It features two locking 3.5mm analog outputs that can be configured to your needs, with a generous 120dB of analog output. A USB-C port give you a digital output for mobile devices and computers, or an external powering input to power the receiver with a battery pack. A 2nd LED display on top of the receiver provides easy viewing of receiver status while in a mixer bag or on-camera. Capable of running up to 20 systems simultaneously in the same area, the K9-US is designed to handle large productions with ease. The elbow-style antennas allow easy positioning for optimum reception when on camera or in a bag, and the SMA connection allow the use of antenna distribution systems, and external antenna paddles for even more stability and flexibility.

32-Bit Float Recording Transmitters with Advanced Timecode Synchronization
The K9TX transmitters feature both 24-bit and 32-bit float on-board recording with advanced timecode synchronization. Ideal for situations and scenarios with heavy wireless interference, allowing you to record your talent and ensure frame accurate synchronization with your camera or recorder. Each transmitter includes a 32GB MicroSD card and can be expanded up to 256GB, allowing an incredible amount of recording power. The K9TX transmitters can jam sync to external timecode sources into its 3.5mm input and wirelessly using the Saramonic TC NEO (Sold Separately). The transmitters can also store up to 8 sync groups, allowing you to easily change your configuration as you change timecode sources.
*Simultaneous recording and wireless transmission are disabled within the US*

Total Control with the Saramonic System Mobile App
Remote control of system settings and configurations of the K9-US system is easy with the Saramonic System app. Allowing you to remotely scan and select frequencies, coordinate multiple systems, adjust gain and output settings, manage power settings, mute and unmute transmitters, and engage the transmitters' backup recorders—all without physically handling the devices. Ideal for filmmakers who need to work fast, streamlining their workflow, and ensuring great sound every time.

Item Includes

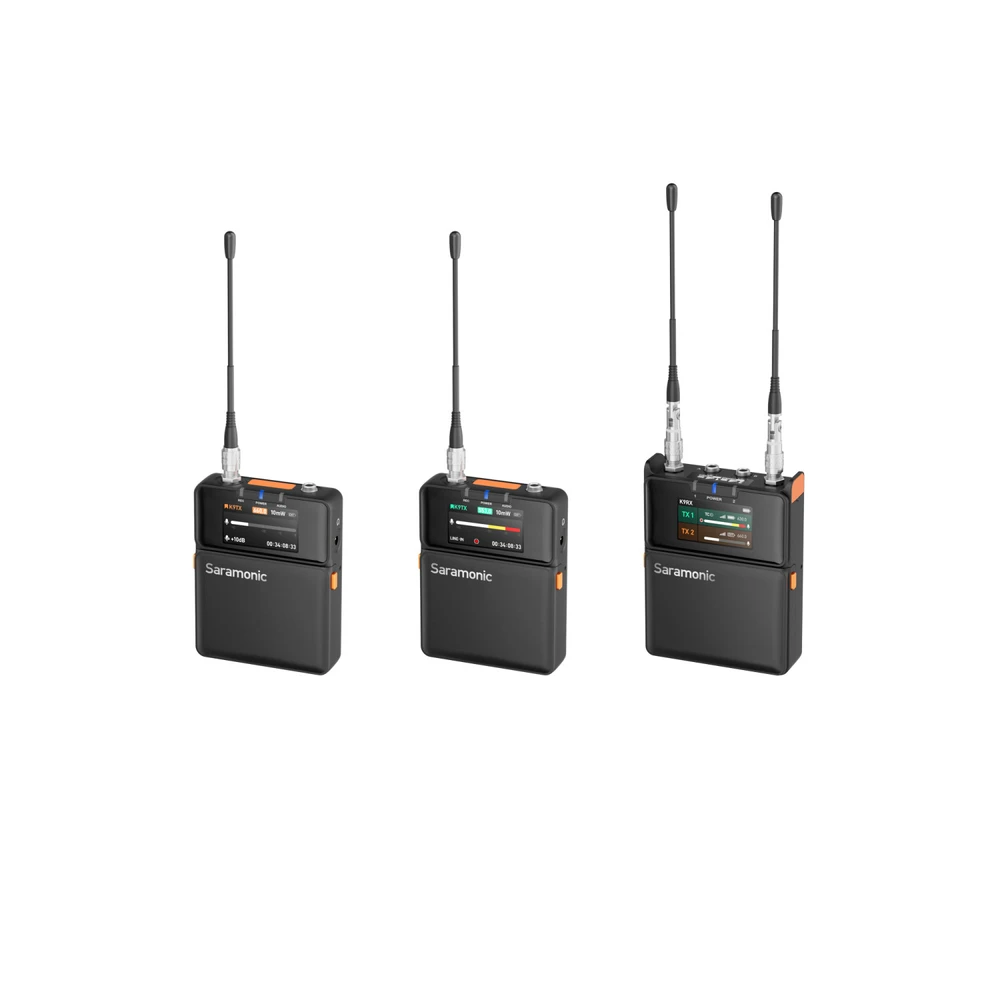

1 x K9RX-US Dual Receiver
2 x K9TX-US Belt Pack Transmitter
2 x Miniature Lavalier Microphones with Locking 3.5mm Connector
2 x Lavalier Microphone Clip
2 x Foam Lavalier Windscreen
2 x Furry High-Wind Lavalier Windscreen
1 x Weather-Sealed Carrying Case for Lavaliers
2 x 32GB MicroSD Card
6 x SMA Antenna for Receiver
6 x SMA Antenna for Transmitters
3 x Belt Clips
1 x Cold Shoe Mount
2 x Locking 3.5mm TRS to XLR Output Cable
1 x Locking 3.5mm TRS to 3.5mm TRS Output Cable
1 x USB-C to USB-C Data Cable
1 x USB-C to USB-A Adapter
6 x Lithium-Ion AA Batteries
1 x QR Code Card for Manual
1 x QR Code Card for APP Installation
1 x Antenna Length and Frequency Description Card
16 x Colored Tag for Transmitter
16 x Colored Tag for Receiver
1 x Custom Watertight and Impact Proof Carry Case

Transmitter:
RF Modulation: Proprietary Digital RF Modulation
RF Freq Range: 550MHz ~ 960MHz (Assign local legal frequency bands based on the region)
RF Power: 10mW, 25mW, 50mW, 100mW
RF Frequency Step: 100KHz
RF Bandwidth: 200KHz
Channel RF Spacing: 700KHz
Antenna Connector: 50Ω SMA
Dynamic Range: 130dB
Distortion: <0.5%
Frequency Response: 20Hz ~ 20kHz
Selectable Low Cut: OFF, 75Hz, 100Hz, 150Hz
Mic Power/Input Select: MIC-3V, MIC-5V, Line-Level
Mic Input Connector: 3.5mm TRS
Gain Range: 0dB ~ 30dB
ADC Sampling Rate: 48KHz
Bit Depth: 24bit
Clock Accuracy: 0.15 PPM (1 frame out in 48 hours)
Timecode Type: LTC (SMPTE)
Timecode Framerates: 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF, 50, 60
Media: MicroSD Card (Up to 256Gb)
File Format: Wav
Sampling-Rate: 48KHz
Record Format: 24-Bit or 32-Bit Float
Mic Power MIC-3V, MIC-5V, LINE
Equivalent Input Noise (EIN): -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)
Power Supply: External Battery / Power
Battery Life: Up to 9+ Hours with High-Quality Lithium-Ion AA’s
Dimensions (80 x 62 x 19mm)
Weight (85g) (excluding batteries and antenna) - (120.5g) (including batteries and antenna)
Operating Temperature -20°C ~ +45°C
Storage Temperature -30°C ~ +60°C

Receiver:
RF Modulation: Proprietary Digital RF Modulation
RF: Freq Ranges: 550MHz ~ 960MHz (Assign local legal frequency bands based on the region)
RF Power: 10mW, 25mW, 50mW, 100mW
RF Frequency Step: 100KHz
RF Bandwidth: 200KHz
Channel RF Spacing: 700KHz
Antenna Connectors: 2x 50Ω SMA
Receiver Output: 2x Locking 3.5mm Analog Outputs & USB-C Digital Output
Analog Output Dynamic Range: 120dB
Distortion: <0.5%
DAC Bit-Depth: 24-bit
Output Type: Mono, Stereo, Headphone
Power Supply: External Battery / Power
Battery Life: Up to 8+ Hours with High-Quality Lithium-Ion AA’s
Dimensions: (88.1 x 66.1 x 23.6mm)
Weight: (112g) (excluding batteries and antennas) - (157.5g) (including batteries and antennas)
Operating Temperature -20°C ~ +45°C
Storage Temperature -30°C ~ +60°C

Lavalier Microphone:
Directions Omnidirectional
Max SPL 118dBSPL
Dynamic Range: 110dB
Sensitivity: -38dB (1.5V, 2.2K, at 1KHz)
Equivalent Noise Level: Typically, 25dB (A-weighted, Equivalent Sound
Pressure Level)
Signal-to-noise Ratio: >68dB
Operating Voltage 1.3V to 5.0V
Frequency Response: 20Hz~20KHz
Distortion :<3%
Weatherproof Standard: IP67
Operating Temperature: -20℃~+70℃
Tensile Performance: ≥50 N
Tensile Strength Maximal pulling force ≥50 N
Weight: (11g)
Cable Length: (1.8m)
Mic Head Size: Ø3mm x 17.5mm
Connector: Locking 3.5mm TRS with Sennheiser Style Pin-Out
